$59-63 /Set/Sets
| Zahlungsart: | L/C |
| Minimum der Bestellmenge: | 100 Set/Sets |
| Transport: | Ocean |
| Hafen: | Tianjin |
Marke: DD-Zence
Herkunftsort: China
Rahmen Material: Metall
Rahmenoberflächenbehandlung: Pulverbeschichtet
Eigenschaften: Einfach zusammenzubauen
Gelegenheit Nutzen: Gartenzaun
Spezies: Fechten, Gitter & Tore, Zaunplatten
Serviceinhalt: Anleitung, Video der Installation
Height: 1230mm
Width: 2500mm
WIRE: 5mm
Standard: En 10223-7
Powder: Akzonobel
Certificate: Iso 9001
Specification: steel fence
Certification: Astm, Iso9001, Rohs, Ce
Hole Shape: Rectangle
Frame Finishing: Powder Coated
Surface Treatment: Coated
Weave Technique: Plain Weave
Material: Metal
| Verkaufseinheiten | : | Set/Sets |
| Pakettyp | : | Stahlpalette |
| 3D-PANEL-1 | ||||||
| Code | H (mm) | W (mm) | Mesh (mm) | Horizontal wire | Vertical Wire | No.of V |
| 7111230 | 1230(4.00ft) | 2500(8.20ft) | 55x200(2.17"x8") | 4.00 | 4.00 | 2 |
| 7111430 | 1430(4.70ft) | 2500(8.20ft) | 55x200(2.17"x8") | 4.00 | 4.00 | 2 |
| 7111730 | 1730(5.70ft) | 2500(8.20ft) | 55x200(2.17"x8") | 4.00 | 4.00 | 3 |
| 7111930 | 1930(6.34ft) | 2500(8.20ft) | 55x200(2.17"x8") | 4.00 | 4.00 | 3 |

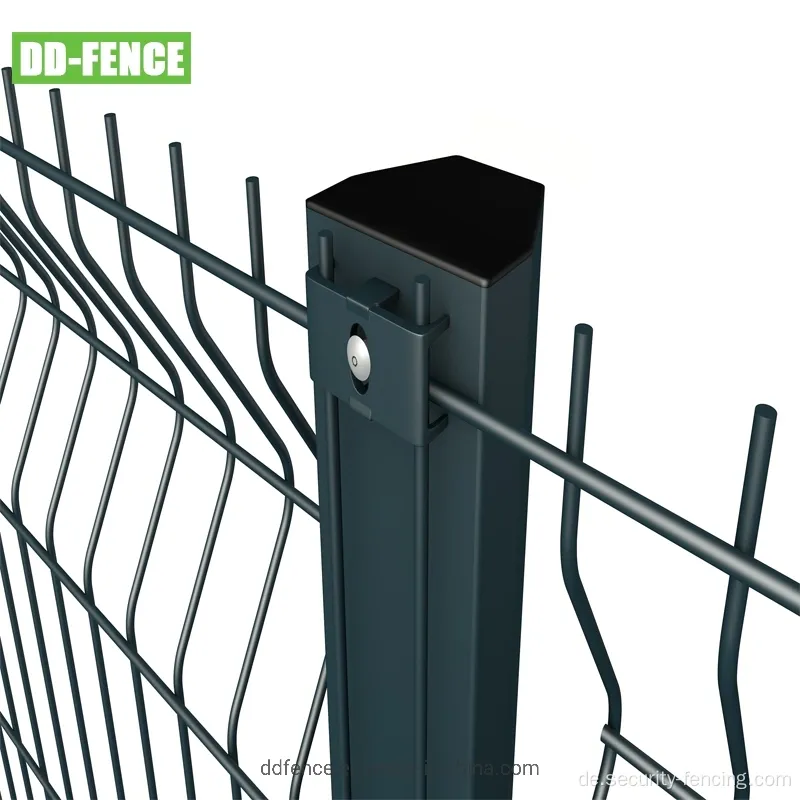

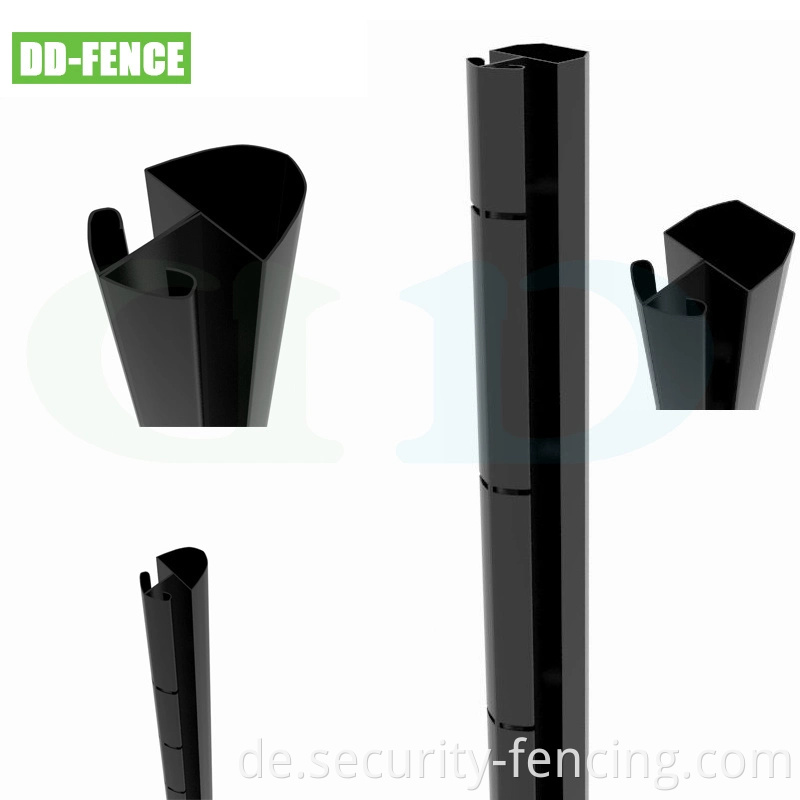

| POST-58x80 | ||||
| Code | H (mm) | Depth(mm) | Section (mm) | Wall thick(mm) |
| 7211600 | 1600(5.25ft) | 370(1.21ft) | 58X80(2.29"x3.15") | 1.0(19GA) |
| 7211900 | 1900(6.25ft) | 470( 1.54ft) | 58X80(2.29"x3.15") | 1.0(19GA) |
| 7212200 | 2200(7.22ft) | 470( 1.54ft) | 58X80(2.29"x3.15") | 1.0(19GA) |
| 7212400 | 2400(7.87ft) | 670(2.20ft) | 58X80(2.29"x3.15") | 1.0(19GA) |
| 7212600 | 2600(8.53ft) | 670(2.20ft) | 58X80(2.29"x3.15") | 1.0(19GA) |
| POST-70X100 | ||||
| Code | H (mm) | Depth(mm) | Section (mm) | Wall thick(mm) |
| 7221900 | 1900(6.25ft) | 470(1.54ft) | 70X100(2.76"x3.94") | 1.0(19GA) |
| 7222200 | 2200(7.22ft) | 470(1.54ft) | 70X100(2.76"x3.94") | 1.0(19GA) |
| 7222400 | 2400(7.87ft) | 670(2.20ft) | 70X100(2.76"x3.94") | 1.0(19GA) |
| 7222600 | 2600(8.53ft) | 670(2.20ft) | 70X100(2.76"x3.94") | 1.0(19GA) |

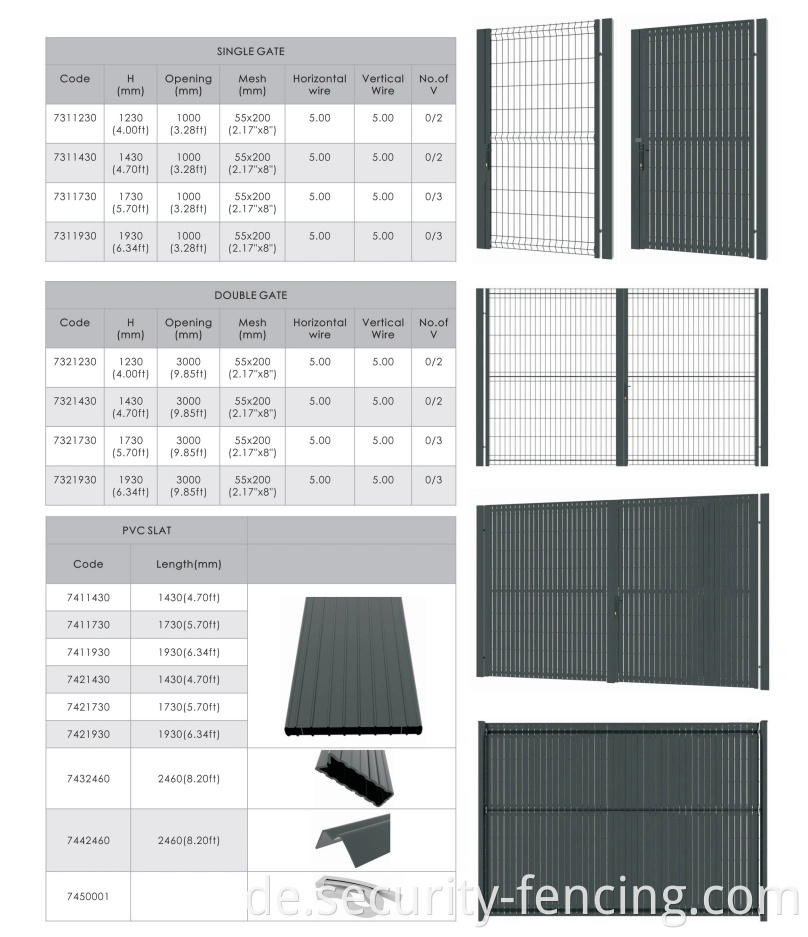

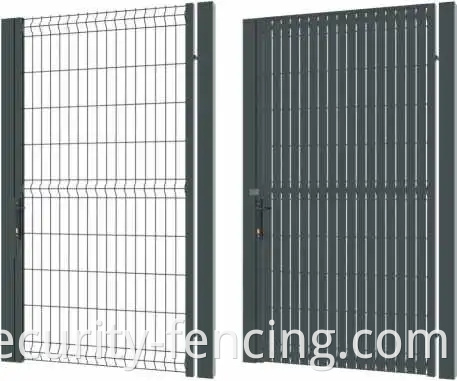

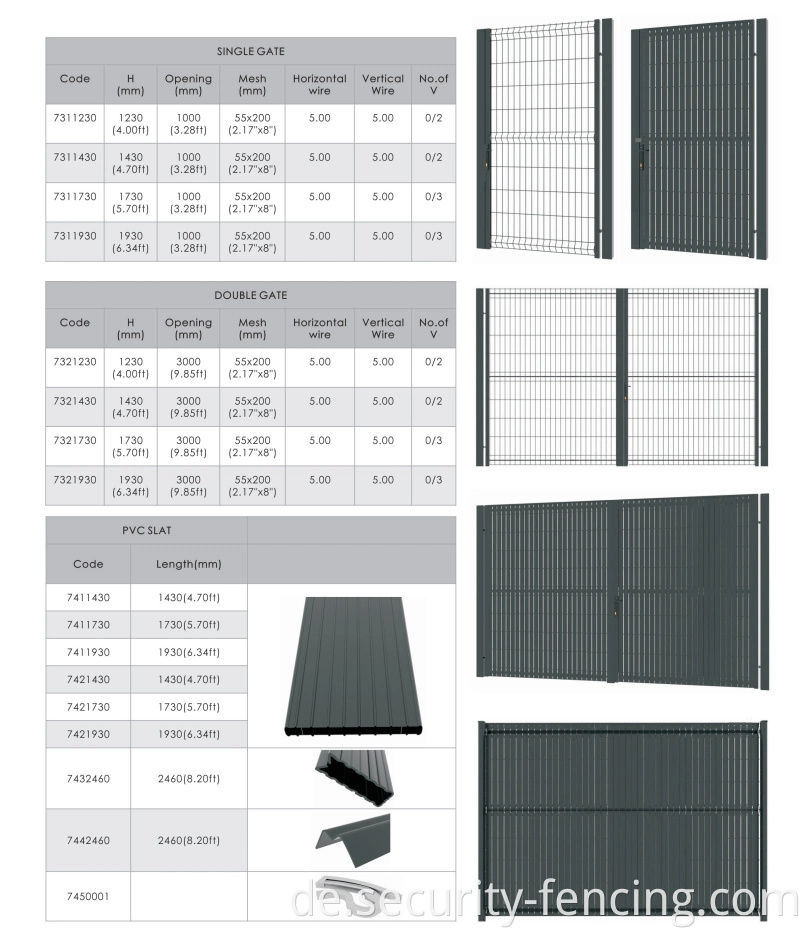

| Code | H (mm) | SINGLE GATE | Vertical Wire | No.of V | ||
| Opening (mm) | Mesh (mm) | Horizontal wire | ||||
| 7311230 | 1230(4.00ft) | 1000(3.28ft) |
55x200 (2.17"x811) |
5.00 | 5.00 | 0/2 |
| 7311430 | 1430(4.70ft) | 1000(3.28ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/2 |
| 7311730 | 1730(5.70ft) | 1000(3.28ft) |
55x200 (2.17"x811) |
5.00 | 5.00 | 0/3 |
| 7311930 | 1930(6.34ft) | 1000(3.28ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/3 |
| DOUBLE GATE | ||||||
| Code |
H (mm) |
Opening (mm) | Mesh (mm) | Horizontal wire | Vertical Wire | No.of V |
| 7321230 |
1230 (4.00ft) |
3000 (9.85ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/2 |
| 7321430 |
1430 (4.70ft) |
3000 (9.85ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/2 |
| 7321730 |
1730 (5.70ft) |
3000 (9.85ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/3 |
| 7321930 |
1930 (6.34ft) |
3000 (9.85ft) |
55x200 (2.17"x8") |
5.00 | 5.00 | 0/3 |
